Large Resort & Cluster Bungalows/Villa

Introduction

As the popularity of smart phone, PC, pad, the stable, high speed and secure wireless network has become the standard service of shopping mall, the good internet experience will increase the traffic volume of shopping malls. Therefore, this scheme provides a complete wired and wireless network solutions for shopping malls.

Requirement Analysis

1. Integrated wired and wireless network to meet with customers and employee’s requirement.
2. Customer network and employee network isolated to ensure the whole network Security and stable
3. Support captive portal authentication like Google/Facebook/WeChat/SMS Login to realize advertisement promotion
4. Centralized configured by WLAN Controller, Plug and Play; Remote maintained by cloud server, simple and cost saving.

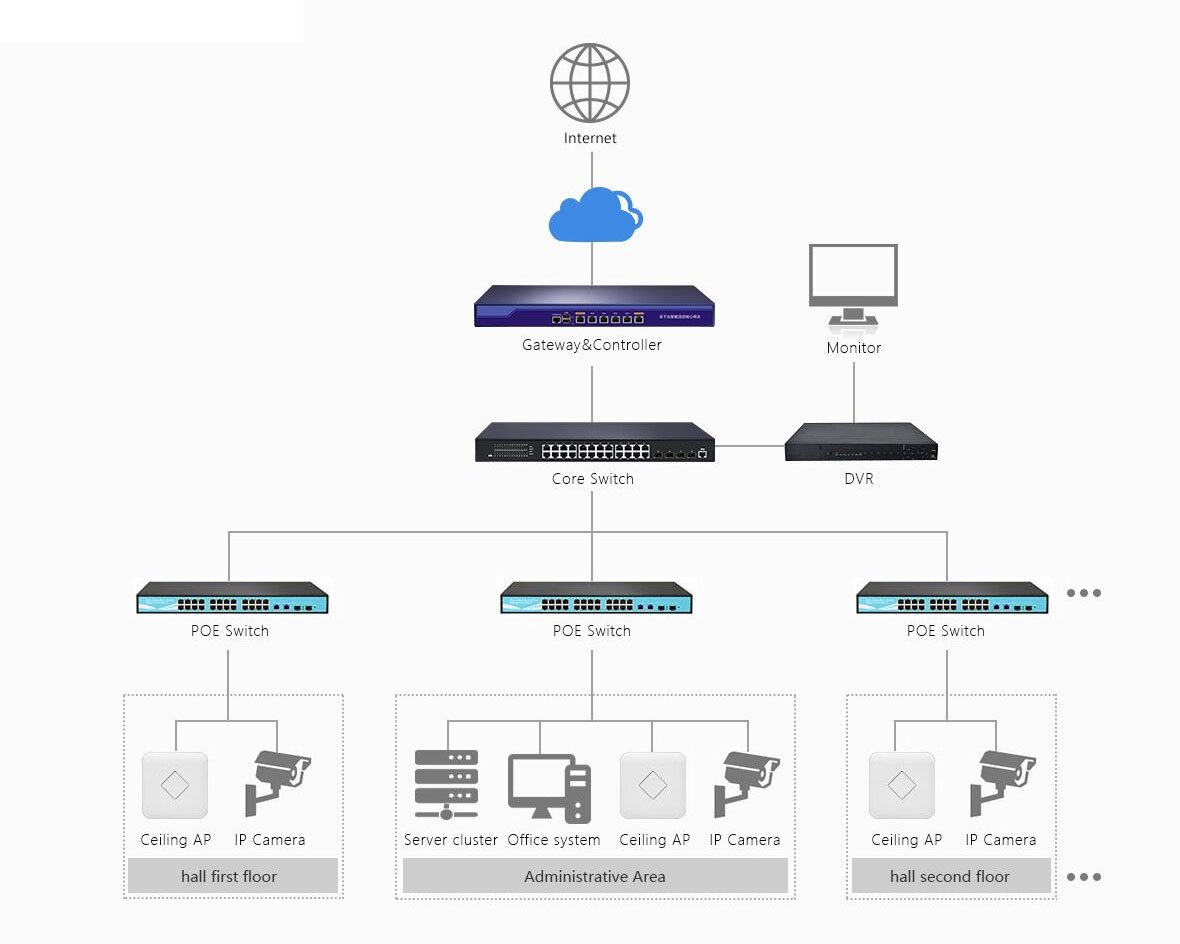

Network Topology

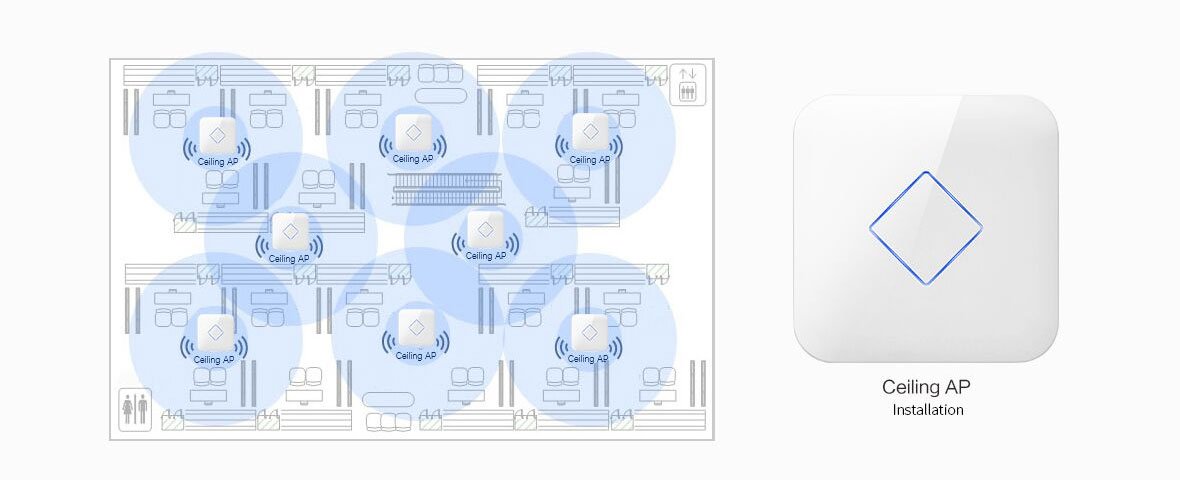

Installation

5 port poe switch managed

Feautures

  • mall, Guest can enjoy their real time entertainment or office working freely even they are moving between different wireless access point coverage.
  • Centralized Configuration and Management AC Controller (Authentication gateway) automatically to detect all the connected wireless access points, distribute IP address for each wireless AP, zero configure SSID, password, channel, VLAN, RF power in a single PC, easy to achieve the installation and management.
  • Data Isolation to Ensure Network Secure Most VLAN Switch support port isolation; Then wireless AP support multiple SSID, different SSID banding with different VLAN ID to do data isolation; different users access into different SSID to protect the whole network security.
  • Multiple Authentication and Advertisement Promotion Work as Authentication gateway, AC controller can access into cloud server, realize captive portal authentication, such as Facebook Google/WeChat/Member login, supply wireless access after advertise promotion, even can collect users browse record and contact information for second time sell.
  • Remote Maintenance AC Controller (Authentication Gateway) access into cloud server, then administrator can access into cloud server and login AC controller’ s web interface to do the management and maintenance at any time and any place, simple and cost saving.
