W5-W1200

Key Features:

  • Comply with IEEE 802.11ac/b/g/n, dual band, 1200 Mbps Data Rate, 11ac 2×2 MIMO Technology, 1*WAN and 2*LAN Gigabit Ethernet Ports to meet with different customer’s request.
  • Support active IEEE 802.3af 48V PoE standard
  • Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
  • Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP and Repeater operation mode in FAT AP
  • With function of Built-in basic firewall, IP, URL & MAC Filter
  • Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
SKU: W5-W1200 Categories: ,

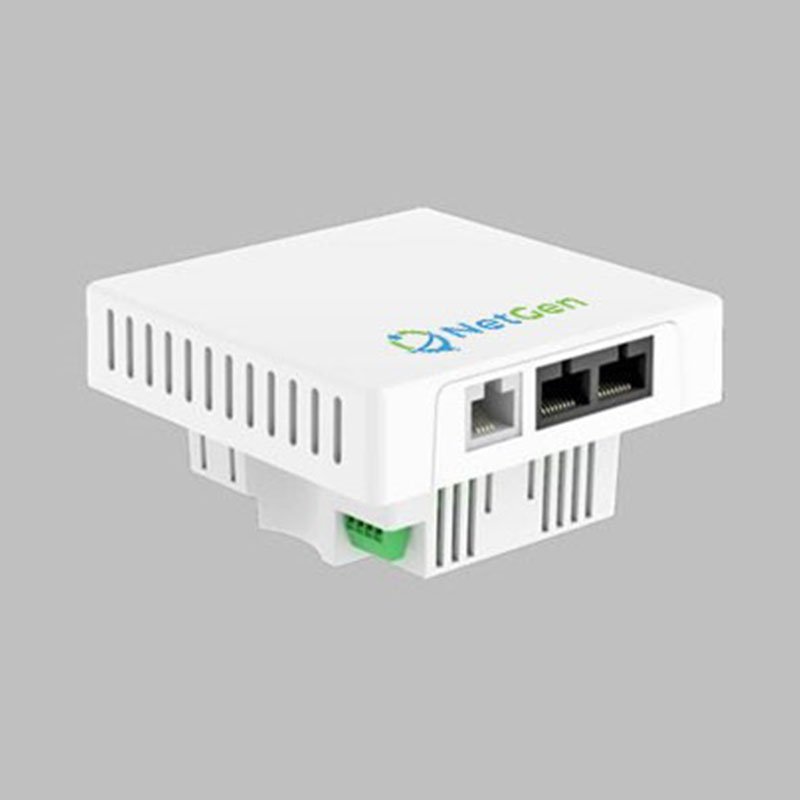

W5-W1200 is an 11ac Wi-Fi standard, Dual Band, Wall mount style wireless access point upgrade to the latest wireless-AC technology, combined with 1200 Mbps Wi-Fi speed over 2.4GHz (300 Mbps) and 5GHz (900 Mbps) and dual-band with embedded PoE Support. The AP can practically support more than 60 client devices.
This mode is suitable for deployments options for hotels, hospitals, small meeting rooms, small offices, or similar requirements.

Main Features:

  • FIT / FAT Operation Mode
  • Wireless AC Technology, more users
  • Dual-Band, 5G Priority, Less Interference
  • Power over Ethernet
  • Built-in Wi-Fi Channel Analysis Tool for the best channel
  • Zero Configure & Cloud Management System
Hardware Features
Chipset QCA9563 + QCA9886 + QCA8337
Flash 16M Flash
DDR 128M DDR
Interface 1 * 10/100/1000Mbps WAN port
2 * 10/100/1000Mbps LAN ports
1 * RJ11 port (Bypass for Telephone)
Power Supply 48V PoE, IEEE 802.3af standard
Maxi Power Consumption < 8W
Dimensions (W X D X H) 86*86*35mm
Antenna Type Built-in dual band (2.4GHz & 5.8GHz ) Omni
Gain - 2dBi
Impedance - 50 Ohms nominal
